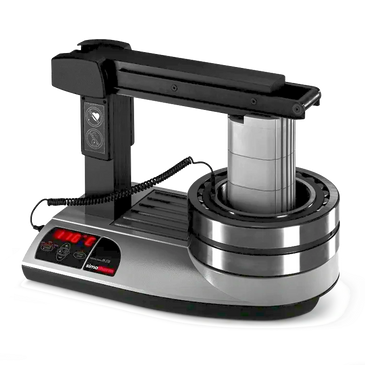

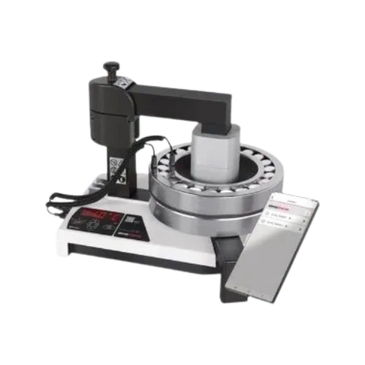

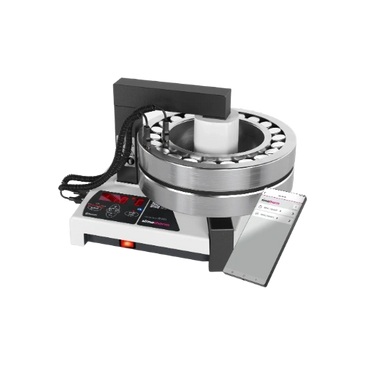

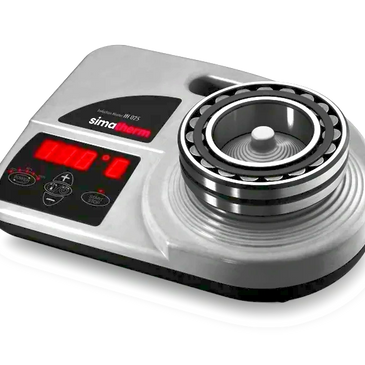

INDUCTION HEATER

Bearing Fitting & Extraction Tool Kit (Combi-Kit 10–30 mm)

Key Features:

• 2-in-1 Solution: Industrial-grade kit for the quick, safe, and precise mounting and dismounting of bearings.
• Damage Prevention: Distributes force evenly to ensure impact is not transmitted through the rolling elements, preventing damage and extending component life.
• Versatile Application: Ideal for bearings, bushings, seals, and tension rollers.
• Supported Sizes: Designed for bore diameters ranging from 10–30 mm.

Kit Contents (39 Pieces Total):

• Mounting Tools: 21 impact rings, 2 impact sleeves, and 1 dead-blow hammer.
• Dismounting Tools: 1 sliding hammer, 2 spindles, 5 sets of puller arms, and 7 support rings.

Bearing Puller Kit (10–100 mm)

Key Features:

• Safe Dismounting: Swiss-made, high-quality tool kit designed for safely and easily extracting deep groove ball bearings from shafts and blind housings.
• Supported Sizes: Designed for bore diameters ranging from 10–100 mm.
• Wide Compatibility: Covers over 60 bearing types (including 6000–6020, 6200–6217, 6300–6313, and 6403–6410 series). Also compatible with shielded (ZZ) bearings once the shield is removed.
• Secure Grip: Features specially designed puller arms that lock firmly into the raceway between the inner and outer rings, preventing slippage.
• Compact & Portable: Housed in a durable, compact carrying case with a total weight of only 3.2 kg.

Large Bearing Puller Kit (30–160 mm)

Key Features:

• Direct & Safe Dismounting: Professional-grade kit designed for the direct extraction of large deep groove ball bearings without the need to dismantle adjacent machinery, saving time and preventing damage.
• Supported Sizes: Designed for bore diameters ranging from 30–160 mm (covers over 50 bearing types).
• Non-Destructive Extraction: Features an innovative and easy removal method: simply drill the bearing cage, insert the ball adapters, twist 90 degrees, and pull.
• Comprehensive Tools: Includes a robust selection of ball adapters in various sizes and extension rods to accommodate different jobs.
• Ideal Companion: Serves as a heavy-duty upgrade that perfectly complements the BP 61 model, all organized in a high-quality carrying case.

High-Pressure Bearing Fitting Tool (55–60 mm)

Key Features:

• Press Compatibility: Designed for use with hydraulic presses to ensure the safe, effortless, and damage-free mounting of bearings and seals.
• Heavy-Duty Capacity: Withstands up to 5 tons (50 kN) of press force; ideal for mechanical engineering, automotive, and industrial maintenance.
• Supported Sizes: Designed for bore diameters ranging from 55–60 mm.
• Flexible Integration: Fully compatible with FT 33 rings utilizing the included adapter.

Kit Contents & Specifications:

• Kit Contents: 6 aluminum impact rings, 1 FT-P impact sleeve, and 1 FT-P DC adapter.
• Portability: Housed in a durable carrying case (340 x 275 x 83 mm) with a total weight of 3.5 kg.

Bearing & Seal Dismounting Toolset

Key Features:

• Safe Extraction: Professional kit designed for the fast, damage-free removal of deep groove ball bearings (both inner and outer interference fits) and radial shaft seals.
• Supported Sizes: Accommodates shaft diameters from 10–100 mm and outer diameters up to 150 mm.
• Perfect Integration: Specifically designed to perfectly complement the simatool Fitting Tool FT 33.

Kit Contents (6.6 kg Total Weight):

• 1 sliding hammer with an extension rod.
• 6 pairs of articulated puller arms (A1–A6) and 2 threaded spindles.
• 9 support rings (Ø 10–75 mm) and 10 spacer rings.
• 50 self-tapping screws specifically for seal extraction.

Bearing Fitting Tool FT 33

Key Features:

• Safe & Precise Mounting: Designed by simatec for the fast, accurate, and damage-free installation of bearings and seals. It distributes force evenly to ensure impact is not transmitted through the rolling elements.
• Supported Sizes: Designed for bore diameters ranging from 10–50 mm.
• Versatile Installation: Supports various mounting applications, including pressing onto a shaft, into a housing, or both simultaneously.
• Wide Compatibility: Compatible with over 200 different types of deep groove ball bearings.

Kit Contents:

• 33 high-impact nylon rings.
• 3 aluminum impact sleeves.
• 1 dead-blow hammer.
• Conveniently housed in a portable carrying case.

Slide Hammer Radial Shaft Seal Puller

Key Features:

• Safe Extraction: Professional tool designed for the quick and safe removal of radial shaft seals without dismantling adjacent components, preventing scratches on shafts or housings.
• Fast & Efficient: Remarkably quick operation, successfully extracting seals in just 10–30 seconds.
• Deep Access: Features extension rods to easily reach and extract deep-seated or hard-to-access seals.
• Versatile Application: Ideal for industrial equipment, agricultural machinery, automotive, and general motor maintenance.

Kit Contents:

• 1 steel sliding hammer.
• 2 extension rods.
• 50 special self-tapping screws for seal extraction.
• 20 spacer sleeves.

Bearing Handling Tool (BHT)

Key Features:

• High Safety Standards: TÜV SÜD certified and manufactured according to DIN EN 13155 and AfPS GS 2019:01 PAK standards to minimize operator injury risks.
• Versatile Lifting: Specifically designed for the safe and secure lifting of large bearings in both vertical and horizontal positions.
• Secure Grip: Features a specially designed locking mechanism that ensures confident, slip-free handling of heavy components to prevent damage.
• Lightweight Design: Highly ergonomic and lightweight; for example, the BHT 300–500 model weighs only 6.3 kg despite its heavy-duty capabilities.

Available Models:

• BHT 200–400: For bearing outer diameters of 200–400 mm (Maximum lifting capacity: 150 kg).
• BHT 300–500: For bearing outer diameters of 300–500 mm (Maximum lifting capacity: 500 kg).
• BHT 500–700: For bearing outer diameters of 500–700 mm (Maximum lifting capacity: 500 kg).
